    #12027

    S-EVAP-KD
    8 Position 250ml

    DESCRIPTION

    The mechanical thermostat 8 position S-EVAP-KD large scale solvent evaporator (Cat# 12027) can evaporate up to 8 samples at once with a capacity of up to 250 ml at each sample position.  Glassware sets can be purchased for individual solvent collection (Cat# GS2152), or central solvent collection (Cat# GS2152-C with Cat# GS2156-C8).



    ADVANTAGES

    • Solvent recovery: recover up to 97% of starting solvent volume with individual or central solvent collection

    • Conserves valuable bench space: all samples are arranged in a circle

    • Easy sample access: the instrument rotates allowing all samples to be accessed from the front

    • Fewer connections: one water supply line in, one drain line out

    • Protects delicate samples: Organomation vacuum insulated concentrator tubes keep delicate samples safe

    • Gentle concentration: water bath is gentler than jacketed concentration tubes in traditional KD set-up

    Solvent Recovery

    Recover up to 97% of starting solvent volume with individual or central solvent collection

    Easy Sample Access

    The instrument rotates allowing all samples to be accessed from the front

    Fewer Connections

    One water supply line in, one drain line out

    Gentle Concentration

    Organomation vacuum insulated concentrator tubes keep delicate samples safe

    STANDARD FEATURES

    • Condenser holder assembly for solvent recovery condensers

    • Flow meter and rigid supply tube for condenser water supply

    • Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation

    • Parallel water supply/drain manifolds with quick disconnect tube fittings

    • Bath temperature range 30°C - 100°C

    • Evaporate solvents with boiling points up to 65°C

    • Mechanical thermostat temperature control +/- 2°C

    OPTIONS

    • Positive pressure Z purged bath (Option Code -Z)

    • 240V wiring and plug (Option Code -2)

    • Reduced height system, 32 inches tall for KD flasks/deep bath

    To learn more about this unit’s available configurations and optional features, please click here.



    Amy & David CTA

    SPECS

    Instrumental Name

    S-EVAP
    Instrument Catalog Number 12027
    Application Kuderna-Danish Flasks/Deep Bath
    Number of Sample Positions 8

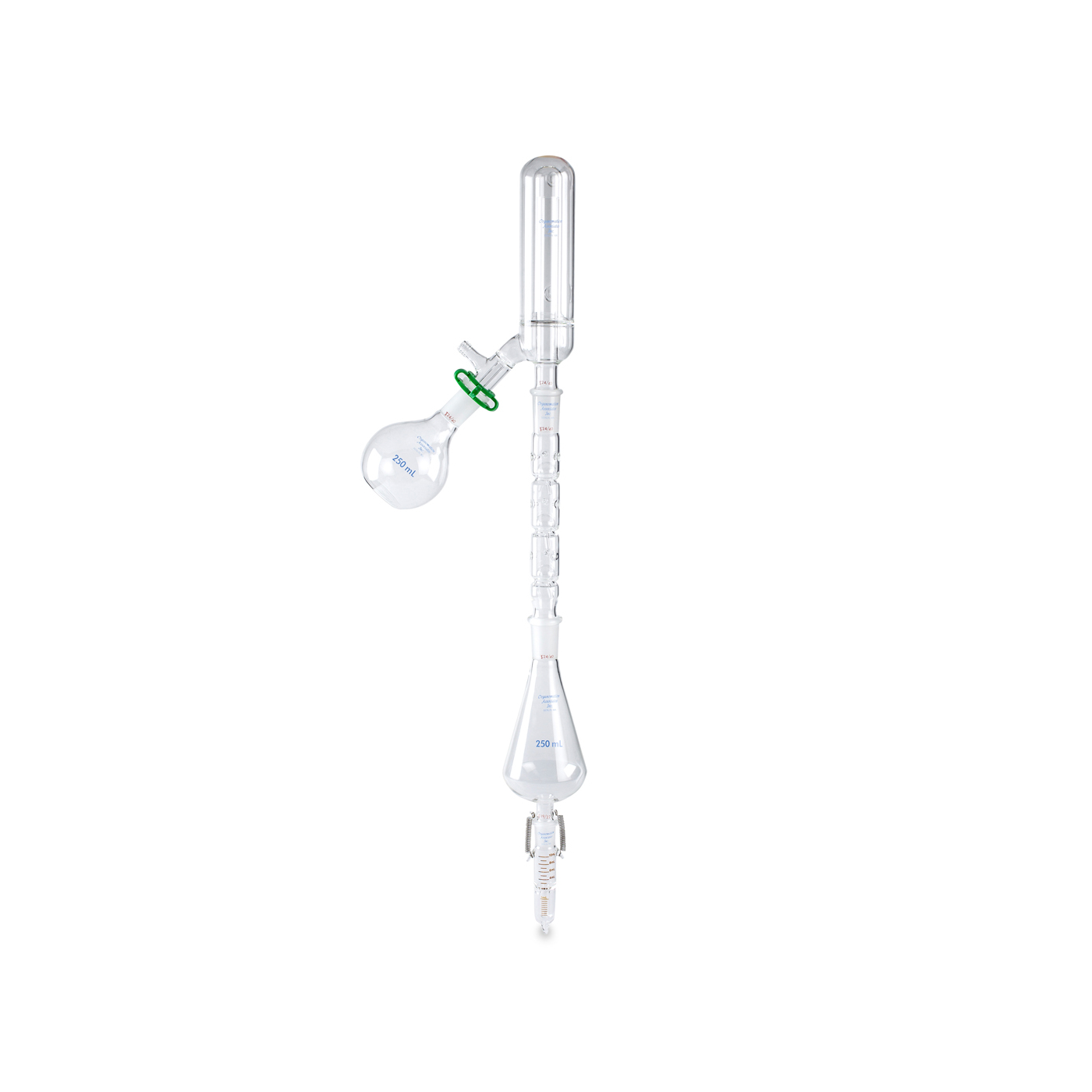

    Individual Solvent Collection
    Overall Dimension (w x d x h) 24 x 22 x 40 in
    (61 x 56 x 102 cm)
    Required Glassware GS2152
    Sample Flask Type Kuderna-Danish, 250 mL
    Concentrator Tube Insulated Tip, 10 mL
    Snyder Column 3-ball design, 253 mm
    Condenser Type Inverted Hopkins with 24/40 side arm
    Collection Flask Type Round with flat bottom, 250 mL
    Central Solvent Collection
    Overall Dimensions
    (w x d x h)
    18 x 16 x 40 in
    (46 x 41 x 102 cm)
    Required Glassware

    GS2152-C

    GS2156-C8
    Sample Flask Type Kuderna-Danish, 250 mL
    Concentrator Tube Insulated tip, 10 mL
    Snyder Column 3-ball design, 253 mm
    Condenser Inverted Hopkins with ¼ in tube fitting
    Central Collection Flask Size Central with 8 ports, 2.5 L
    Heating Device Specs
    Bath Model Number 13129
    Heating Medium Water

    Inside Dimensions (Diameter x Depth)

    12.0 x 8.5 in
    30.5 x 21.6 cm
    Outside Dimensions (w x d x h) 18 x 16 x 11 in
    (46 x 41 x 28 cm)
    Total Wattage 1300 W
    Temperature Range 30-100 °C
    Temperature Controller Type
    Mechanical Thermostat
    Controller Accuracy +/- 2 °C



    ACCESSORIES

    • 250 ml individual collection glassware set Cat# GS2152

    • 250 ml central collection glassware set Cat# GS2152-C with Cat# GS2156-C8

    • Cover for 3.0 in disk holes Cat# XA2282

    • KD rack for 250/500 ml flasks, 8 pos Cat# XA2290

    • Chiller

    REPLACEMENT PARTS

    • Buna O-ring set Cat# P1332

    • White silicone tubing, 10 ft Cat# P2616

    • Thermometer 100°C Cat# NA1110

    For information on parts and accessories not listed, please contact a sales technician.
