Nitrogen Evaporators in Microplate Sample Preparation

Nitrogen evaporation technology operates on the principle of nitrogen blowdown, where a continuous stream of inert nitrogen gas is directed onto the surface of liquid samples contained within microplate wells. This gas flow disturbs the liquid surface and removes solvent vapors at a significantly higher rate than would occur under ambient conditions. The process is enhanced through the application of controlled heating, which increases the energy of the nitrogen gas and results in faster solvent evaporation rates.

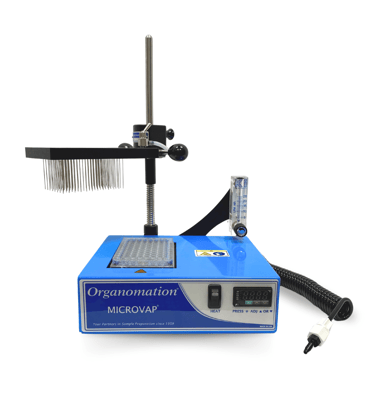

Modern microplate nitrogen evaporators feature specialized manifold designs that deliver heated nitrogen simultaneously into every well of a microplate. This parallel processing capability represents a significant advancement over traditional single-sample evaporation methods, enabling laboratories to process entire 96-well or 384-well plates simultaneously while maintaining uniform evaporation rates across all sample positions.

The evaporation rate depends on several critical parameters including gas flow rate, temperature, and the physical properties of the solvents being removed. Low boiling point solvents such as methanol, acetonitrile, and dichloromethane can often be evaporated effectively using nitrogen flow at ambient temperatures, while higher boiling point solvents including water, dimethyl sulfoxide (DMSO), and dimethylformamide (DMF) require additional heat to achieve reasonable evaporation times.

Gas Delivery Systems

Contemporary microplate evaporators incorporate sophisticated gas delivery manifolds that ensure uniform nitrogen distribution across all wells. The most common configuration utilizes 96 stainless steel needles arranged in an 8×12 array pattern that corresponds exactly to standard microplate well spacing. These needles, typically measuring 2 inches in length with 19-gauge diameter, are precisely positioned to deliver consistent gas flow to each well without causing sample splashing or cross-contamination.

Advanced systems include individual flow control capabilities, allowing operators to shut down gas flow to specific manifolds when not all plate positions are in use, thereby conserving nitrogen gas consumption. Flow meters with ranges from 0-25 L/min for single plates up to 0-100 L/min for multi-plate systems provide precise control over evaporation rates.

Temperature Control Systems

Precise temperature control represents another critical component of microplate nitrogen evaporators. Digital temperature controllers coupled with solid aluminum heating blocks provide uniform heat distribution across the entire plate surface. These systems typically offer temperature ranges from ambient conditions up to 130°C with accuracy specifications of ±0.5°C to ±2°C.

The aluminum heating blocks are custom-manufactured to accommodate specific microplate formats, ensuring optimal heat transfer from the heating element to the sample containers. This design provides excellent temperature stability across the full operating range, which is particularly important for applications requiring precise temperature control to prevent sample degradation.

Safety and Operational Features

Modern microplate evaporators incorporate multiple safety features including high-temperature limit switches, nitrogen filtration systems, and compact designs suitable for operation within standard laboratory fume hoods. The units are typically CE-marked and conform to relevant safety standards, ensuring safe operation in laboratory environments.

Manual hoist assemblies or automated lifting mechanisms allow operators to easily position and remove the gas manifolds, facilitating plate loading and unloading procedures. Some advanced systems incorporate dual-band spring hoist assemblies for enhanced operator convenience when working with multiple plates simultaneously.

LC-MS/MS Sample Preparation

Nitrogen evaporation plays a particularly important role in liquid chromatography-mass spectrometry (LC-MS/MS) sample preparation workflows. Following protein precipitation procedures using acetonitrile or other organic solvents, samples typically require solvent removal before reconstitution in mobile phases optimized for chromatographic separation. Nitrogen evaporators provide a rapid and gentle method for removing organic solvents while preserving analyte integrity.

For LC-MS applications involving very dilute samples, nitrogen evaporation enables sample concentration by removing excess solvent, thereby increasing analyte concentrations and improving analytical sensitivity. This concentration step is particularly valuable when working with biological samples that have undergone extensive cleanup procedures, such as protein precipitation using specialized microplates.

The process typically involves evaporating solvents such as acetonitrile, dichloromethane, and methanol from microplate wells, followed by reconstitution in appropriate solvent systems for LC-MS analysis. Modern programmable evaporators offer stored method capabilities that allow operators to develop standardized protocols for specific solvent combinations and sample types.

Metabolomics and Biochemical Analysis

Metabolomics applications frequently require nitrogen evaporation as part of comprehensive sample preparation workflows. Following metabolite extraction procedures, samples often contain organic solvents that must be removed before analysis or storage. Microplate nitrogen evaporators enable high-throughput processing of metabolomics samples while maintaining the low sample volumes typical of these applications.

The gentle nature of nitrogen evaporation makes it particularly suitable for heat-sensitive metabolites that might be degraded by more aggressive drying methods. Temperature-controlled evaporation allows optimization of drying conditions for specific compound classes while preventing thermal decomposition.

Pharmaceutical and Drug Discovery Applications

In pharmaceutical research and drug discovery applications, nitrogen evaporation facilitates the preparation of compound libraries and screening samples. Following compound dissolution and dilution procedures, excess solvents must often be removed to achieve appropriate concentrations for biological assays. Microplate evaporators enable parallel processing of large numbers of compounds while maintaining the precise volume control required for quantitative assays.

The ability to process multiple plates simultaneously using triple-plate configurations allows pharmaceutical laboratories to maintain high throughput while reducing operator time and improving workflow efficiency. These systems can accommodate up to three 96-well plates simultaneously, significantly increasing sample processing capacity.

Solvent Compatibility and Evaporation Rates

Different solvents require specific evaporation conditions to achieve optimal results while maintaining sample integrity. Common chromatography solvents including acetonitrile, methanol, dichloromethane, and hexane are readily evaporated using nitrogen blowdown due to their volatile nature and compatibility with nitrogen gas. Higher boiling point solvents such as water, DMSO, and DMF require elevated temperatures, typically up to 80°C, to achieve reasonable evaporation times.

Typical evaporation times vary significantly based on solvent properties and operating conditions. For example, methanol-water mixtures (50:50) can be evaporated in approximately 4 hours under optimized conditions, while methyl-ethyl-ketone samples require only 45 minutes. Volatile organic solvents in standard microplate applications can often be completely removed in less than 6 minutes when using appropriate temperature and flow rate settings.

Process Optimization Strategies

Effective microplate nitrogen evaporation requires careful optimization of multiple parameters including gas flow rate, temperature, needle height, and evaporation time. Flow rate optimization involves balancing evaporation speed against potential sample loss due to excessive turbulence. Higher flow rates accelerate evaporation but may cause sample splashing or loss, particularly with low-volume samples.

Temperature optimization depends on solvent properties and sample stability considerations. Heat-sensitive samples may require ambient temperature evaporation with extended processing times, while thermally stable samples can benefit from elevated temperatures for rapid solvent removal. The combination of moderate heating (20-25°C above ambient) with controlled nitrogen flow often provides optimal results for most applications.

Quality Control and Reproducibility

Maintaining consistent evaporation conditions across all wells within a microplate requires attention to several critical factors. Uniform heating block temperature distribution ensures consistent evaporation rates, while precise gas flow control prevents variations in drying efficiency between different well positions. Regular calibration of temperature controllers and flow meters helps maintain system performance over time.

Documentation of evaporation parameters including temperature, flow rate, and processing time enables method reproducibility and facilitates troubleshooting when results vary from expected outcomes. Integration with laboratory information management systems (LIMS) can enhance traceability and support regulatory compliance requirements.

Integration with Automated Workflows

Modern microplate nitrogen evaporators are increasingly designed for integration with automated liquid handling systems and robotic platforms. This integration capability enables fully automated sample preparation workflows that combine extraction, evaporation, and reconstitution steps without manual intervention. Programmable evaporators with robot-compatible interfaces support method development and high-throughput screening applications.

The combination of automated liquid handling with programmable nitrogen evaporation enables laboratories to implement walk-away protocols that significantly reduce operator time while improving reproducibility. These integrated systems can process multiple batches of microplates with minimal supervision, making them particularly valuable for high-volume analytical laboratories.

Advanced evaporator models incorporate features such as barcode reading, automated method selection, and real-time monitoring capabilities that support full laboratory automation. These features enable seamless integration with existing laboratory automation infrastructure while providing comprehensive process documentation and quality assurance capabilities.

Advantages Over Alternative Evaporation Methods

Nitrogen evaporation offers several significant advantages over alternative sample concentration methods including centrifugal evaporation, vacuum drying, and freeze-drying. The primary advantage is processing speed, with nitrogen evaporation typically achieving complete solvent removal in minutes rather than hours required by alternative methods. This speed advantage is particularly important in high-throughput environments where sample processing time directly impacts laboratory productivity.

The gentle nature of nitrogen evaporation minimizes thermal stress on samples while providing precise temperature control. Unlike vacuum-based methods that may cause bumping or sample loss, nitrogen evaporation maintains atmospheric pressure conditions that prevent violent boiling and sample splashing. The inert nitrogen atmosphere also prevents oxidation of sensitive compounds during the evaporation process.

Cost considerations also favor nitrogen evaporation for many applications, particularly when compared to specialized freeze-drying equipment or high-end centrifugal concentrators. The relatively simple design and operation of nitrogen evaporators result in lower capital costs and reduced maintenance requirements compared to more complex evaporation systems.

Nitrogen evaporators have become indispensable tools for modern microplate-based sample preparation, enabling laboratories to efficiently remove solvents while maintaining sample integrity and supporting high-throughput analytical workflows. The combination of precise temperature control, uniform gas distribution, and automation compatibility makes these systems essential components of contemporary analytical laboratories across pharmaceutical, biotechnology, and research applications.
