    #11815

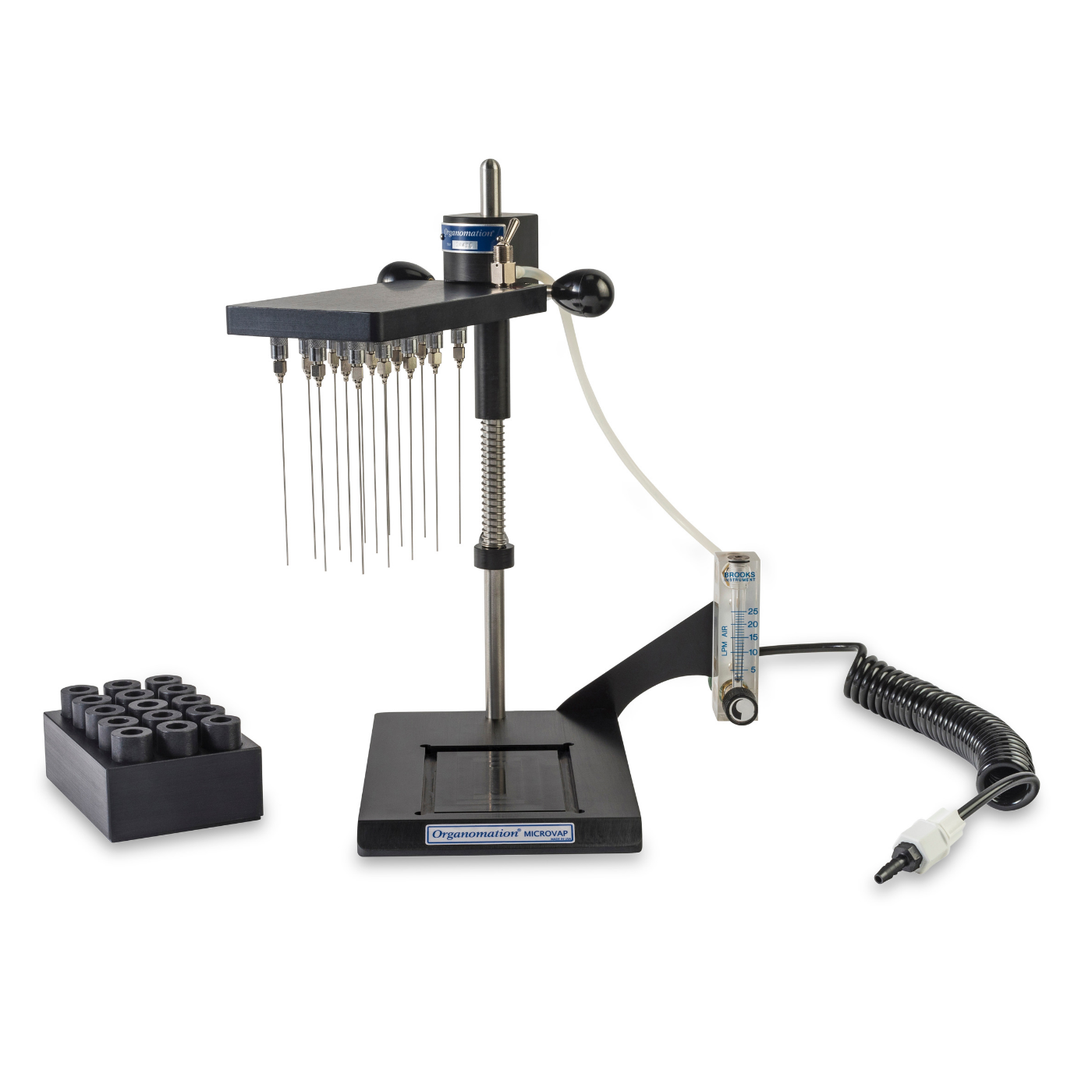

    15 Position MICROVAP
    Nitrogen Evaporator

    DESCRIPTION

    The 15 position MICROVAP benchtop evaporator is intended for small batch solvent evaporations, such as concentrations of sample groups in microcentrifuge tubes. It offers an effective and compact evaporation solution for samples in life science and pharmaceutical laboratories.

    Each MICROVAP uses minimal hood space while providing optimal temperature control for high and low boiling point solvents. The 15 position MICROVAP comes standard with stainless steel luer lock hubs and 4-inch x 19-gauge stainless steel needles for easy removal.

    Up to 15 samples can be accommodated at once, and the instrument comes customized for one sample size with an outside diameter of 10-22mm. If multiple sample sizes will be used with the instrument, inserts can be purchased for each additional sample size.

    Each of the sample blocks and inserts are customized to your samples for a precise fit and optimum heat transfer.

    Since these inserts and heat blocks are made-to-order, we will request that you deliver us three sample vials for each unique vial size upon placing an order for a 15 Position MICROVAP parallel evaporator. In situations where shipping sample vials to Organomation is not possible, we need precise measurements of your sample vials to be taken as illustrated in this guide.

    The digital temperature controls and solid aluminum heating unit provide uniform heat up to 130°C with temperature accuracy of +/- 2°C. A version without heat is available for evaporations that will be performed at ambient temperature.

    Compact Design

    The MICROVAP has the smallest footprint of all of Organomation’s nitrogen evaporators

    Ease of Use

    Temperature and gas levels are easily set using the digital temperature controller and gas flow meter

    Optimal Heat Transfer

    Expertly machined heat block provides efficient heat transfer to sample tubes

    Versatility

    Easily concentrate 96 well microplates using a conversion kit

    HubSpot Video

    STANDARD FEATURES

    • Adjustable flow meter

    • Digital temperature control

    • High temperature limit switch

    • 4-inch x 19-gauge needles

    • Nitrogen filter

    • Anodized aluminum heat block



    OPTIONS

    • 220V wiring harness (Option Code -2)

    • Z-Purge/positive pressure purge case (Option Code -Z)

    • Manifold and stand only; no heating platform (Option Code -O)



    Amy & David CTA

    SPECS

    Instrumental Name 15 Position MICROVAP
    Heater Type Dry block None
    Instrument Catalog Number 11815 11815-O
    Number of Sample Positions 15 15
    Overall Dimensions
    (w x d x h)
    10.0 x 12.5 x 14.5 in
    25.4 x 31.75 x 43.18 cm
    8.5 x 13.0 x 14.5 in
    21.6 x 33.0 x 35.6 cm
    Sample Holder Layout Rectangular Rectangular
    Gas Manifold Layout 3 x 5 Array 3 x 5 Array
    Center to Center Spacing
    Between Positions
    1.0 in
    2.54 cm
    1.0 in
    2.54 cm
    Heat Block Dimensions
    (w x d)
    3.5 x 5.125 in
    8.9 x 13 cm
    3.5 x 5.125 in
    8.9 x 13 cm
    Test Tube Diameter 10-22 mm OD 10-22 mm OD
    Gas Flow Control Single toggle valve Single toggle valve
    Gas Flow Meter Range 0-25 L/min 0-25 L/min
    Stainless Steel Needles
    (Length & Gauge)
    4.0 in x 19 ga
    102 mm x 19 ga
    4.0 in x 19 ga
    102 mm x 19 ga
    Hoist Assembly Manual Manual
    Standard Gas Input Range 20-30 psig 20-30 psig
    Gas Input Range with Optional Pressure Reducing Regulator 30-160 psig 30-160 psig
    Heating Device Specs
    Model Number 18103 N/A
    Outside Dimensions
    (w x d x h)
    10.0 x 9.75 x 3.5 in
    25.4 x 24.765 x 7.6 cm
    N/A
    Total Wattage 180 W N/A
    Temperature Range 40-130 °C Ambient
    Temperature Controller Type Digital Electronic
    with LED Display
    N/A
    Controller Accuracy +/- 2 °C N/A



    ACCESSORIES

    • Nitrogen generator (cat# NA1955)

    • Pressure reducing regulator, 30-160 psi in, 0-30 psi out

    • Pasteur pipette adapters (cat# NA0636)

    • 15 position conversion kit

    • 96 well plate conversion kit

    • Various needles sizes and gauges
