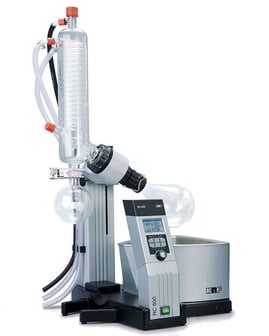

Rotary evaporation is one of the most widely used techniques in laboratories for efficient solvent removal and concentration. Invented by Lyman C. Craig in 1950, the rotary evaporator (rotovap) gently removes solvents from compounds using heat combined with reduced pressure to evaporate, dry, and purify samples for further downstream use.
The process works by mechanically rotating a flask containing the compound in solution in a heated water bath. The rotovap connects to a vacuum pump that reduces the pressure above the bulk solvent, facilitating the draw of vapor away from the sample. The mechanical rotation distributes the solvent as a thin film across the interior of the flask, increasing the evaporation rate and reducing the risk of "bumping," which occurs when a large pocket of solvent vapor forms rapidly and displaces the surrounding liquid.
A cold trap is often used to recover solvent. As explained by Dr Melanie Pribisko Yen and Grace Tang from the California Institute of Technology, “A cold trap filled with dry ice and acetone condenses the solvent vapors, which then drip into a collection flask. The decreased pressure helps reduce the boiling point of the solvent, allowing it to evaporate at a significantly lower temperature than at atmospheric pressure.” [1]
Thin Film Evaporation
Thin film evaporation (also called wiped film evaporation) is designed to handle difficult-to-process liquids such as high-boiling, viscous, fouling, and heat-sensitive solutions. This method uses indirect heat transfer and mechanical agitation to evaporate a thin layer (0.1 mm to 1.0 mm) of flowing substance under controlled conditions.
The key to the efficiency of thin film evaporators is their ability to evaporate the target solution at relatively low temperatures with minimum residence time in the evaporator. This is achieved by operating the evaporator under vacuum conditions and using a high-speed rotor to create a thin liquid film. The main component consists of a rotor/wiper encased in a cylindrical heating jacket.
Other common concentration techniques include:

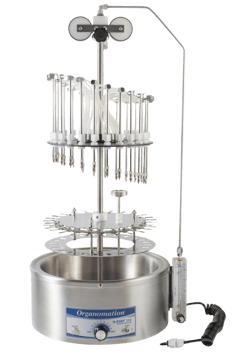

- Nitrogen evaporation: Uses a stream of nitrogen gas to promote evaporation
- Centrifugal evaporation: Combines centrifugal force with heat and vacuum
- Simple distillation: Uses heat only to evaporate a solvent. Often used to separate one liquid from another
Read more: Types of Laboratory Evaporators
Choosing the appropriate solvent is essential for effective and sustainable recovery. The wrong solvent can compromise separation efficiency, drive up energy usage, and make purification for reuse more difficult. Solvent selection also influences overall costs and environmental impact, as poor choices can lead to increased waste and lower process efficiency.
When working with binary solvent mixtures, the solvent evaporation rate generally reflects the properties of the individual solvents, with mixtures composed mostly of volatile components evaporating more quickly than mixtures composed mostly of less volatile components. However, intermolecular interactions between the two compounds can sometimes alter the evaporation rate in unexpected ways, for instance by causing phase separation or changes in surface tension [2].
Read more: Understanding Solvent Types in Chromatography & Mass Spectrometry
Regular maintenance is crucial because it ensures the equipment operates efficiently, minimizes downtime, and extends the lifespan of the recovery system. Neglecting maintenance can lead to breakdowns, reduced solvent recovery rates, and increased repair costs.
Safety is paramount in the entire solvent evaporation process. Employees should be provided with necessary personal protective equipment (PPE), and safety protocols must be strictly followed. This is especially important because solvent recovery involves handling flammable and potentially toxic materials. Failure to implement proper safety measures can result in accidents, fires, and health hazards for workers.
