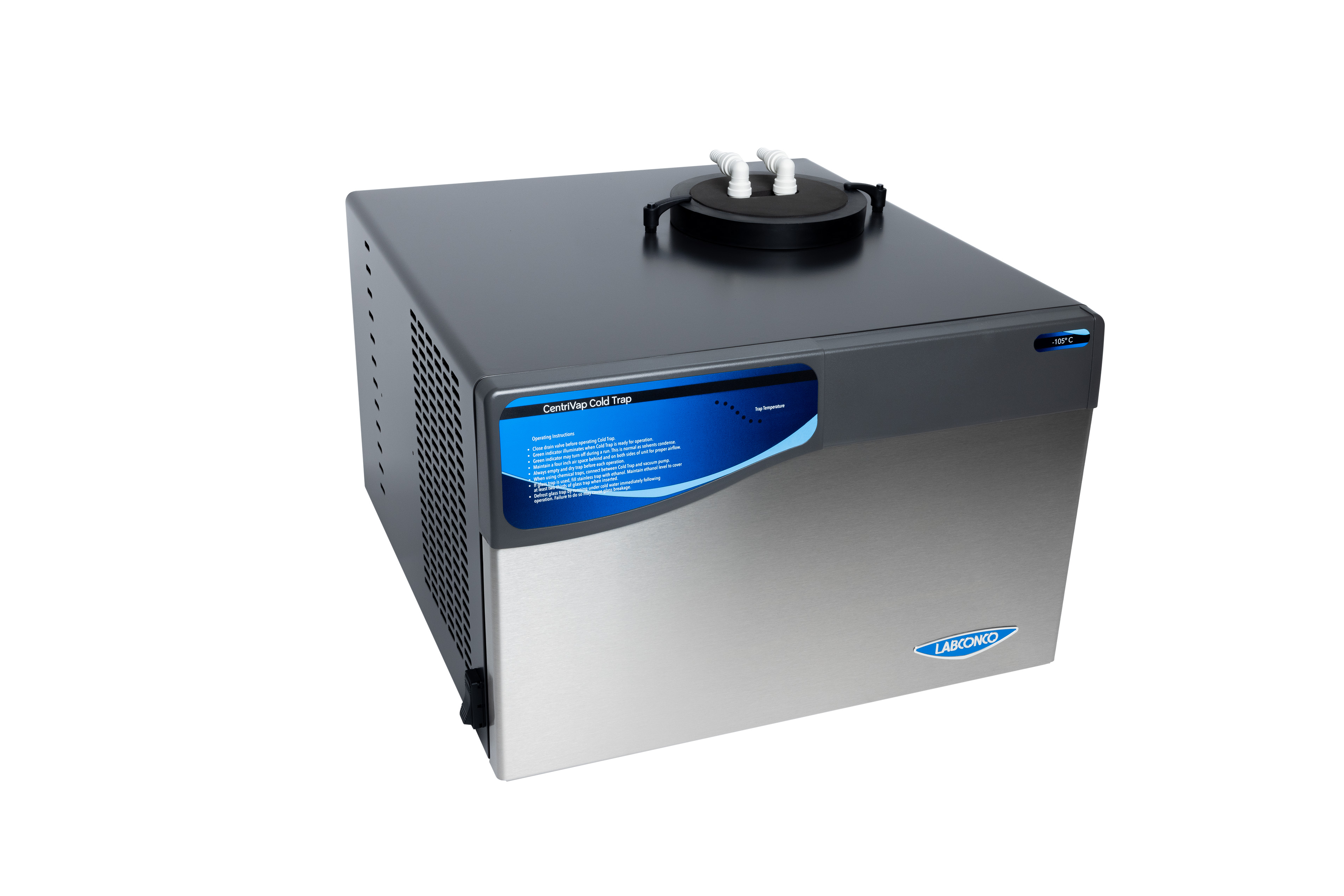

CentriVap Cold Traps
DESCRIPTION
CentriVap Cold Traps safely capture evaporated liquids from CentriVap Vacuum Concentrators, shielding the vacuum pump and lab environment from vapors, fumes, and corrosive substances. They can also be used for other lab processes such as freeze-drying and desiccation. Cold Traps are offered with collector temperatures of –50 °C, –84 °C, or –105 °C, and are available as standalone units or integrated within CentriVap Concentration Systems.
In partnership with Labconco.
Eco-Cool Refrigerant
Environmentally friendly natural gas refrigerant
Temperature Graph
Displays relative coil temperature and has green-light indicator
Corrosion-Resistant
Corrosion-resistant polypropylene valve and stainless steel plumbing
STANDARD FEATURES
- Meant to protect the vacuum pump by trapping moisture vapors and corrosive fumes
- Collector temperatures of -50°C, -84°C, and -105°C available
- Temperature graph displays relative collector coil temperature
- Stainless steel collector holds up to four liters of liquid
- Corrosion-resistant collector drain
OPTIONS:
- -50°C with acrylic lid (Cat# LC-8601000)
- -50°C with stainless lid (Cat# LC-8601100)
- -84°C with stainless lid (Cat# LC-8611100)
- -105°C with stainless lid (Cat# LC-8621100)
OPTIONAL ACCESSORIES:
- Clear canisters and chemical trap inserts
- Glass trap
- Manifold
- CentriVap cart
SPECS
| Instrument | -50°C | -84°C | -105°C |
| Instrument Catalog Number | LC-8601000 | LC-8611100 | LC-8621100 |
| Collector size | 4 liters | 4 liters | 4 liters |
| Dimensions (w x d x h) | 14.5 x 24.2 x 13.8 in | 14.5 x 22.0 x 20.9 in | 24.1 x 23.9 x 17.6 in |
| Weight | Net: 70 lbs. (32 kg) Gross: 80 lbs. (36 kg) |
Net: 135 lbs. (61 kg) Gross: 142 lbs. (64 kg) |
Net: 150 lbs. (68 kg) Gross: 170 lbs. (77 kg) |
| Lid Material | Acrylic or stainless | Stainless | Stainless |
| Collector Coil Temperature | -40°C | -65°C | -65°C |
| Cold Trap Temperature | -50°C | -84°C | -105°C |
| Warranty | 1 year | 1 year | 1 year |
| Electrical Requirements | 115V, 60 Hz | 115V, 60 Hz | 115V, 60 Hz |
RESOURCES
ACCESSORIES
- Chemical trap
- Trap inserts
- Glass trap
- Stainless steel lid (optional for -50°C model)
- Two-port manifold
