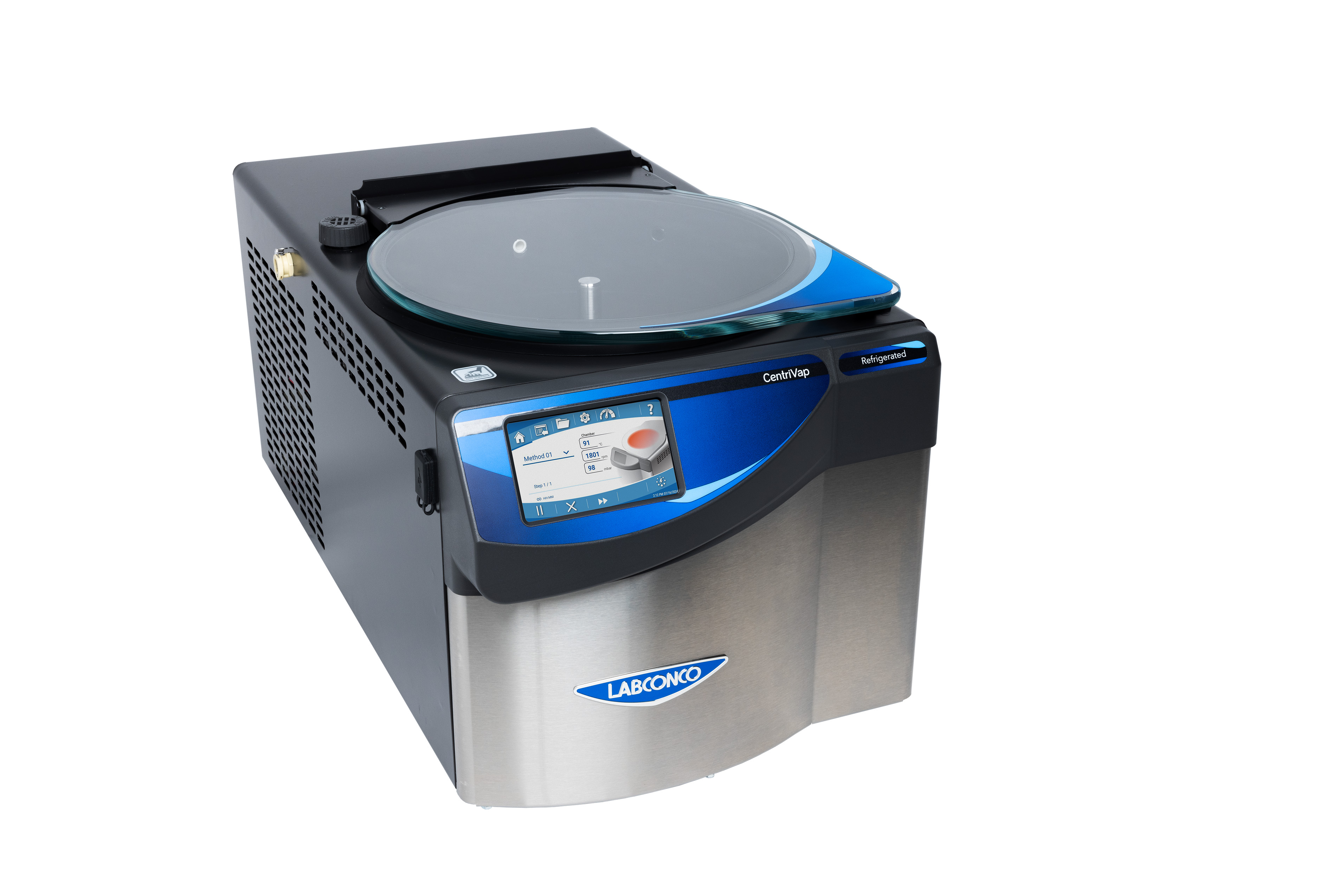

Refrigerated CentriVap Pro
Vacuum Concentrator
DESCRIPTION
The Refrigerated CentriVap Pro Vacuum Concentrator is built to quickly concentrate heat-sensitive samples—such as RNA and proteins—using a combination of centrifugal force, vacuum, and precise temperature control. Its integrated refrigeration system cools down to –10 °C, while the built-in heater warms up to 100 °C, allowing users to achieve and maintain their ideal setpoint. With a double-stacked rotor setup, the unit can accommodate up to 312 samples at once, supporting volumes from just a few microliters to 50 mL. The Refrigerated CentriVap Pro is also offered as part of a complete CentriVap Concentration System.
In partnership with Labconco.
Large Chamber
Holds up to 312 samples for maximum throughput
Stores Unlimited User-Set Programs
Temperature, heat time, pressure, and rotor speed parameters can be saved
Exclusive Temperature Range
Only concentrator that combines a refrigeration and heater system for a temp range of -10°C to 100°C
Pre-Programmed Methods
Built-in methods for processing common laboratory sample types
STANDARD FEATURES
-
Centrifugal force, vacuum, and temperature control to concentrate heat-sensitive samples
- Combines a refrigeration and a heater system to reach user defined temperatures
- Environmentally friendly natural gas refrigerant
- Stores unlimited user-set programs for heat, time, pressure, or rotor speed parameters
- Large chamber to hold up to 312 samples
- Pre-programmed methods for processing common laboratory sample types
REQUIREMENTS (not included):
- Vacuum pump
- CentriVap cold trap
- Rotor(s)
- Sample tubes
OPTIONS:
- PTFE acid resistant coating (Cat# LC-8522100)
OPTIONAL ACCESSORIES:
- CentriZap pro strobe light
- CantriVap cart
- Secondary trap
SPECS
| Instrument | Refrigerated CentriVap Pro | Refrigerated Acid-Resistant CentriVap Pro |
| Instrument Catalog Number | LC-8521100 | LC-8522100 |
| Number of Sample Positions | Up to 312 | Up to 312 |
| Dimensions (w x d x h) | 15.0 x 27.2 x 13.9 in | 15.0 x 27.2 x 13.9 in |
| Weight |
Net: 90 lbs. (41 kg) |
Net: 90 lbs. (41 kg) |
| Lid Material | Glass | Solvent resistant glass |
| Temperature Range | -10 to +100 °C | -10 to +100 °C |
| Warranty | 1 year | 1 year |
| Electrical Requirements | 115V, 60 Hz | 115V, 60 Hz |
| Rotor Speed | 500-1800 RPM | 500-1800 RPM |
ACCESSORIES
-
Metal rotors for tubes
- Microliter plate rotors
- Metal rotors for pear-shaped flasks
- CentriZap standard strobe light
- Diaphragm vacuum pumps
- Rotary vane direct drive vacuum pumps
- Vacuum controller
- Three-way valve
- Bleed valve
- Vacuum tubing kit
