Teflon-Free MULTIVAPs
for PFAS Testing
DESCRIPTION

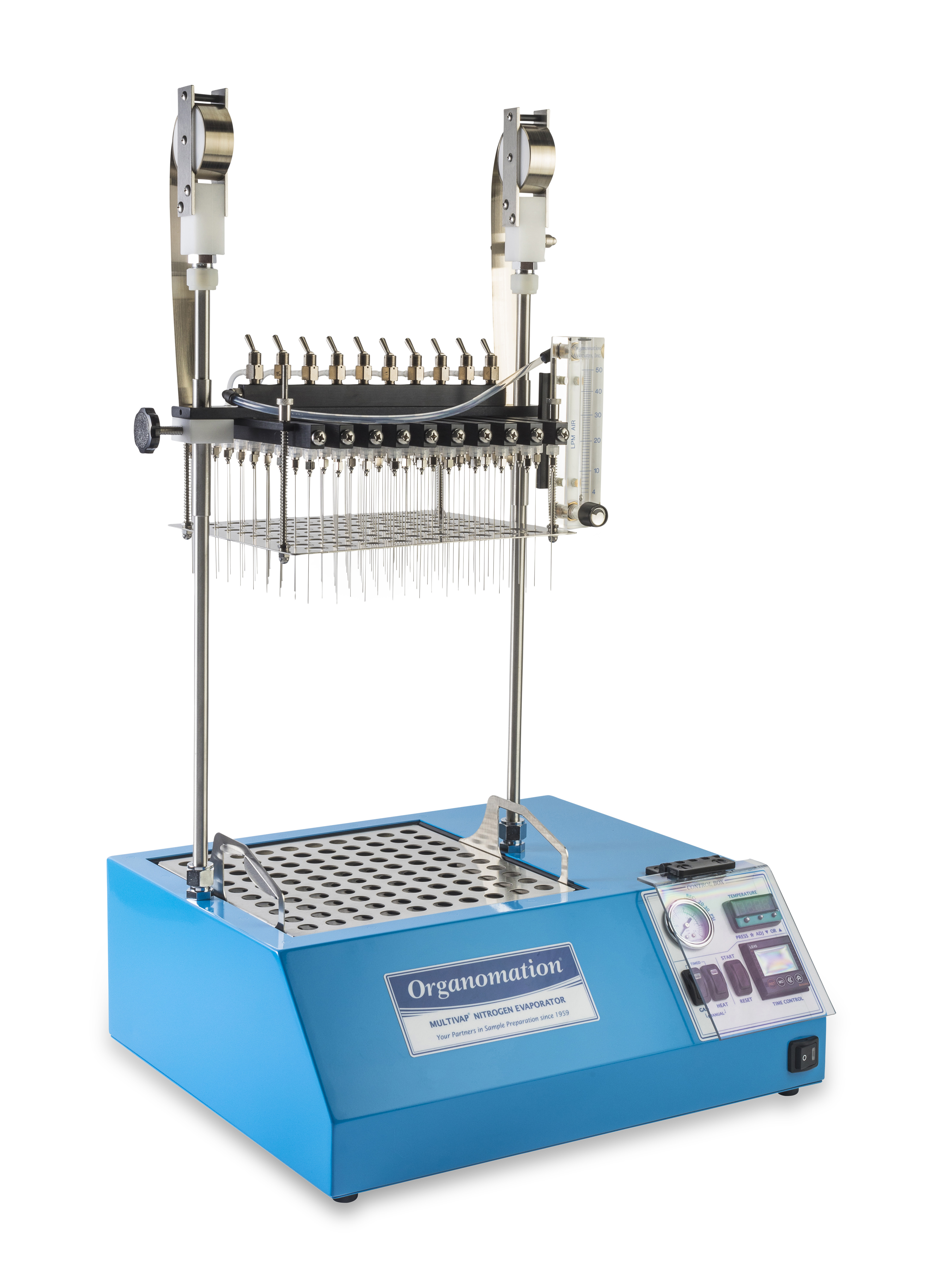

The Teflon-free MULTIVAP nitrogen evaporators are designed for laboratories performing high-throughput PFAS sample preparation and concentration. These evaporators allow large batches of samples to be processed simultaneously while eliminating potential fluoropolymer contamination during nitrogen blowdown evaporation. Both the 64 and 100 position models are constructed using 100% Teflon-free components, ensuring that no PTFE or other fluoropolymers are present in the instrument.
Suited for EPA PFAS methods 533, 537.1, and 1633, these MULTIVAP systems are widely used and trusted by the top environmental testing laboratories.
The Teflon-free MULTIVAP evaporators are well suited for testing laboratories processing large batches of identical samples, where high throughput and consistent evaporation conditions are required. These evaporators use a gas distribution manifold to deliver nitrogen evenly to all samples, while toggle switches allow individual rows of samples to be turned off when running smaller batches to conserve nitrogen gas. These MULTIVAPs use a heated water bath capable of temperatures from 30°C to 100°C to support efficient evaporation across a range of solvents. Sample racks are customized to your specific tube size to ensure proper fit.
For laboratories that require high-throughput PFAS evaporation, the Teflon-free MULTIVAP provides an efficient and reliable solution. Laboratories performing smaller or more variable batches may instead benefit from Organomation’s Teflon-free N-EVAP nitrogen evaporators, which are designed for flexible research workflows.
Learn how Microbac Laboratories uses a MULTIVAP nitrogen evaporator to dry down their PFAS samples: Read case study!
Capacity
Evaporate batches of up to 64 or 100 samples, with outside diameters of up to 30 mm
Precise
Digital controls allow exact temperature regulation
Teflon-Free Guarantee
Made with 100% PTFE-free materials to avoid contamination of PFAS samples
Consistent
Uniform evaporation across all samples with no adjustment needed between runs
STANDARD FEATURES
- Adjustable flow meter
- Dual band hoist spring assembly
- High temperature limit switch for safety
- Safety control cover plate
- Digital temperature controller
- Electronic timer
- Nitrogen filter
- Gas distribution manifold
- Built-in pressure reducing regulator
- Needle guide
OPTIONS (Add to main Cat# when purchasing)
- 220v wiring harness (Option Code# -2)
- 64 position model: Cat# 11364-NT-2
- 100 position model: Cat# 11300-NT-2
SPECS
| Instrumental Name | Teflon-Free 64p MULTIVAP | Teflon-Free 100p MULTIVAP |
| Bath Type | Water | Water |
| Instrumental Catalog Number | 11364-NT | 11300-NT |
| Number of Sample Positions | 64 | 100 |
| Standard Dimensions (w x d x h) | 19 x 17 x 34 in 48 x 43 x 86 cm |
19 x 17 x 34 in 48 x 43 x 86 cm |
| Sample Holder Layout | Square | Square |
| Gas Manifold Layout | 8 x 8 array | 10 x 10 array |
| Center to Center Spacing Between Positions | 1.3125 in 3.33 cm |
1.0 in 2.54 cm |
| Test Tube Diameter | 11-30 mm OD | 11-22 mm OD |
| Gas Flow Control On/Off Valve | Every row of 8 | Every row of 10 |
| Gas Flow Meter Range | 0-30 L/min | 0-50 L/min |
| Stainless Steel Needles (Length x Gauge) | 4.0 in x 19 ga 102 mm x 19 ga |
4.0 in x 19 ga 102 mm x 19 ga |
| Needle Guide | Standard | Standard |
| Hoist Assembly | Dual Pulley & Band Springs | Dual Pulley & Band Springs |
| Built-in Gas Regulator Input | 30-110 psig | 30-110 psig |
| Heating Device Specs | ||
| Model Number |
11196 | 11196 |
| Inside Dimensions (Diameter x Depth) | 11 x 11 x 5.5 in 28 x 28 x 14 cm |
11 x 11 x 5.5 in 28 x 28 x 14 cm |
| Outside Dimensions (w x d x h) | 19 x 17 x 7 in 48 x 43 x 18 cm |
19 x 17 x 7 in 48 x 43 x 18 cm |
| Total Wattage | 1100 W | 1100 W |
| Bath Temperature Range | 30-110 °C | 30-100 °C |
| Temperature Controller Type |
Digital Electronic with LED Display | Digital Electronic with LED Display |
| Controller Accuracy | +/- 2 °C | +/- 2 °C |
TESTIMONIALS
RESOURCES
- MULTIVAP Instruction Manual (Catalog #s 11364, 11300)
- MULTIVAP Parts and Accessories List
- 64 Position MULTIVAP Brochure and Specifications
- 100 Position MULTIVAP Brochure and Specifications
ACCESSORIES
- Custom sized racks for 64 position model (cat# NA1360)
- Custom sized racks for 100 position model (cat# NA1361)
- Nitrogen generator (cat# NA1935)
- Pasteur pipette adapters (cat# NA0636, cannot be used with needle guide)
- Luer plugs (cat# NA1307)
- Pressure reducing regulator 0-160 psi (cat# NA0630-NT)
- Various needle sizes and gauges
